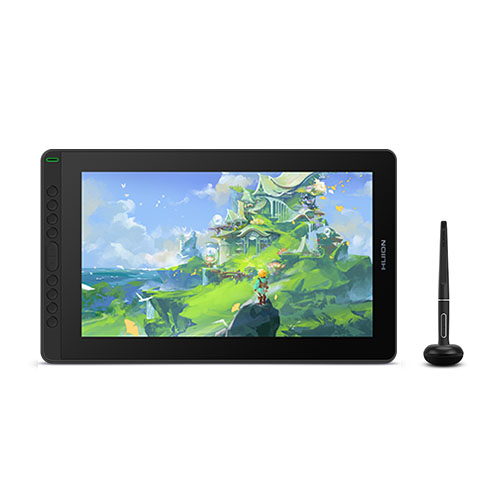

Huion Kamvas 16 (2022) RDS-160 + Stand

$459

Availability: Pre-Order

Quick Overview

Start with full-laminated AG glass.
The IPS screen is fully laminated with the anti-glare glass, which eliminates the gap between the cursor and the pen nib, improves accuracy and minimizes the parallax. AG glass reduces the reflection and increases the friction between the pen and the glass, thus providing a pen-on-paper experience.

  1. Quantum dot technology brings 145% sRGB color gamut
  2. Anti-glare screen to effectively reduce the reflection
  3. Full-lamination technology to minimize parallax
  4. PW517 to provide organic and precise pen strokes
  1. 8192 levels of pressure sensitivity to render lines smoothly and naturally
  2. ±60° tilt support to realize the special effects created by various strokes
  3. 10 programmable press keys to facilitate your creation
  4. Compatible with devices running Windows, macOS, and Android operating systems
  • Model
    RDS-160
  • Appearance
    Color:Cosmo Black, Metal Gray
    Dimension:423.5 x 253 x 12mm
    Workspace:344.16 x 193.6mm
    Net Weight:1.26Kg
    Touch:-
    Stand:Foldable Stand ST300 20°/45°
    Video Interface:3-in-1 USB-C(HDMI), Full Featured USB-C
  • Screen
    Resolution:1920 x 1080(16:9)
    LCD Type:IPS
    AG Glass:Anti-glare etched glass
    Full Lamination:Full lamination
    Contrast Ratio:1000:1
    Brightness:220nit (Max.)
    Response Time:25ms
    Viewing Angle:89°/89°(H)/89°/89°(V) (Typ.)(CR>10)
    Gamut:145% sRGB(Quantum dots)
    Display Color:16.7M(8bit)
  • Technical Specifications
    Digital Pen:PW517
    Pen Technology:Battery-free EMR
    Pen Resolution:5080 LPI
    Pressure Sensitivity:8192levels
    Tilt Support:±60°
    Sensing Height:10mm
    Report Rate:>220PPS
    Accuracy:±0.3mm(Center)±2mm(Corner)
    Press Keys:10 programmable press keys
  • Operating Conditions
    Input Voltage:USB 5V
    Output Voltage:5V 2A
    Power Consumption:≤10W
    Standby Consumption:≤0.3W
    Working Temp. and Humidity:0-40°C, 20-80%
    Storage Temp. and Humidity:-20°C~60°C, 10-90%
  • OS Compatibility
    Windows 7 or later,
    macOS 10.12 or later,
    Android(USB 3.1 DP1.2)
