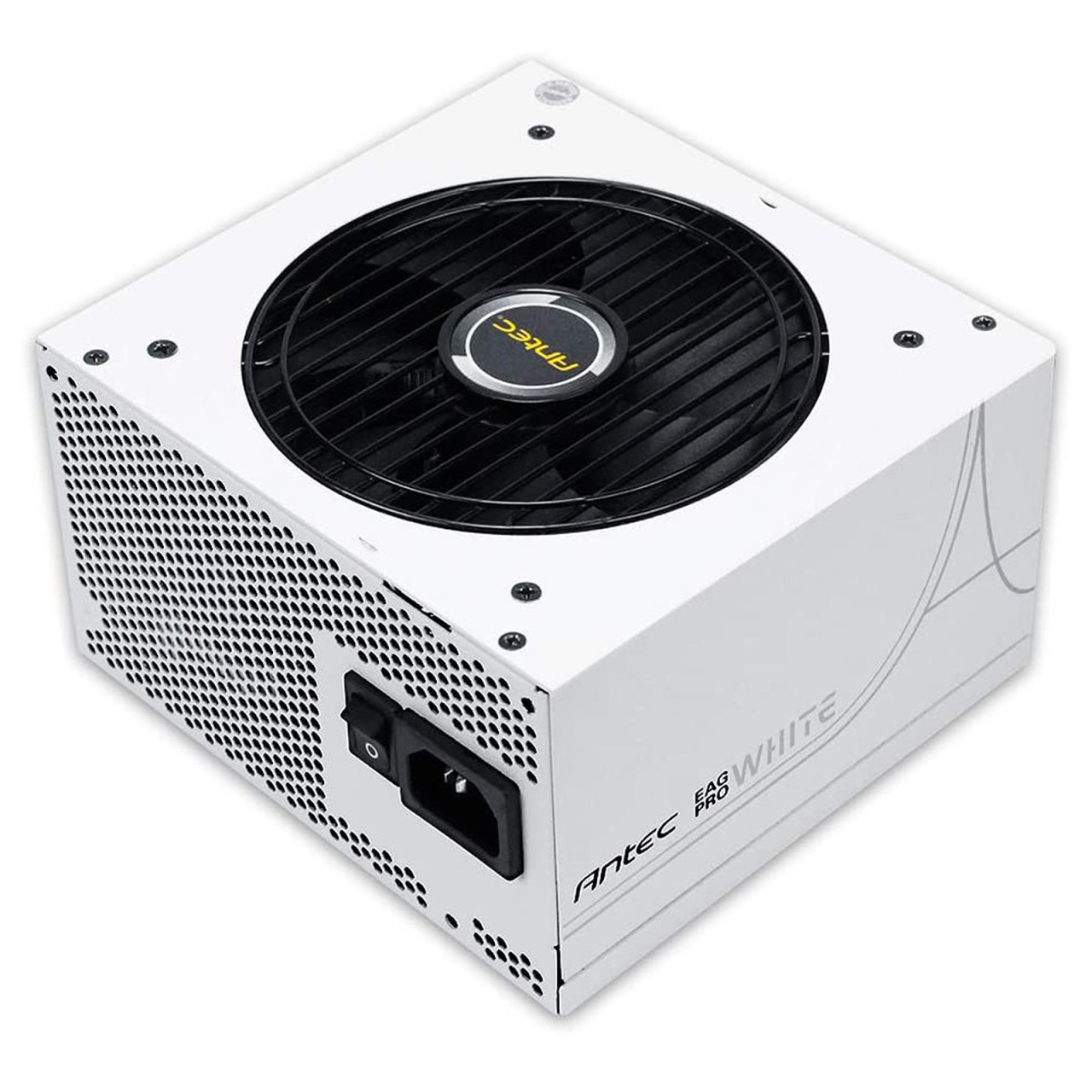

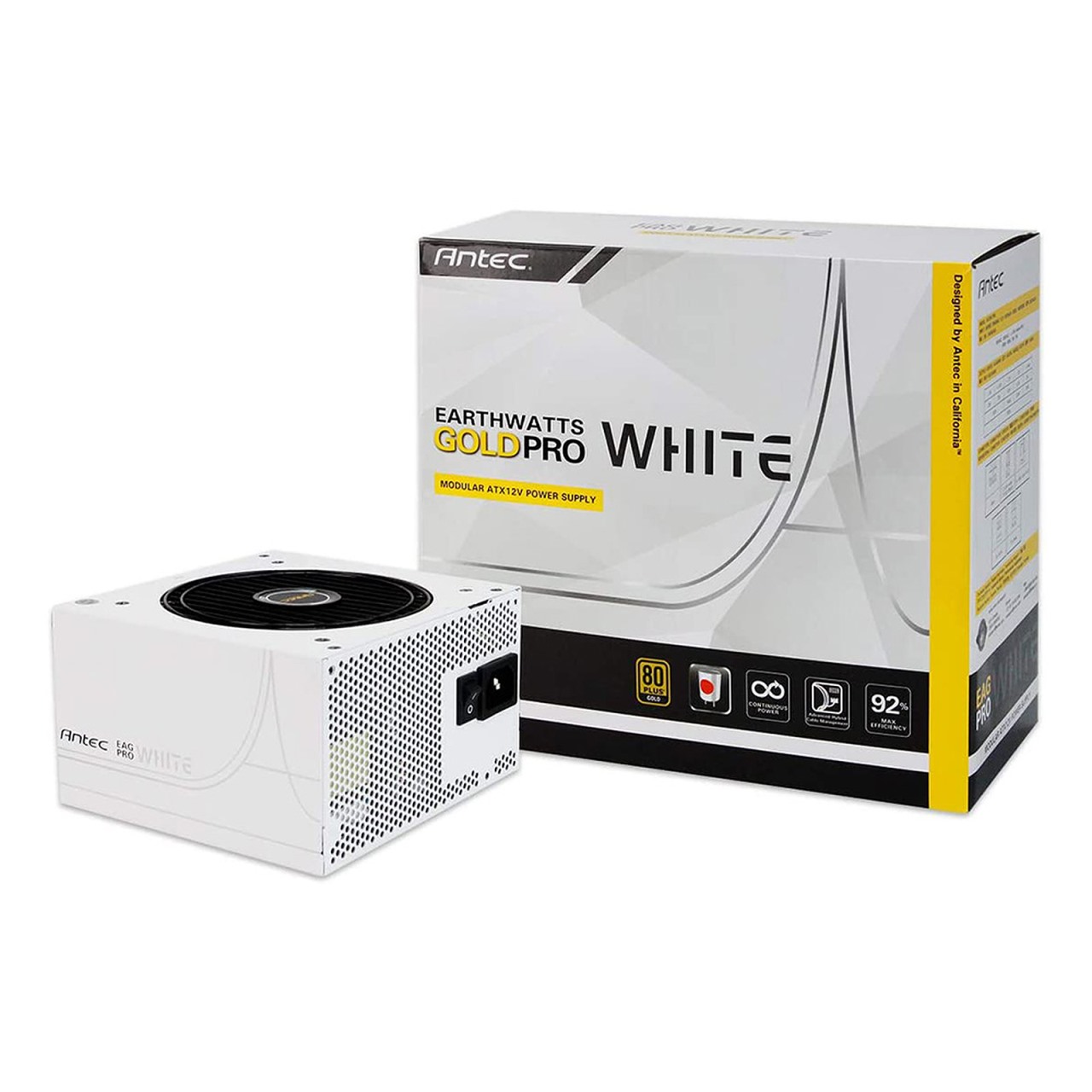

ANTEC EA750G PRO White

Quick Overview

Model EA750G PRO White
Type ATX 12V 2.4
Modular Semi-Modular
Dimension 140 x 150 x 86 mm (LWH)
Warranty 7 years
Input Voltage 100-240 VAC
Input Current 10A-5A
Input Frequency Range 50Hz-60Hz
PFC Active PFC (>0.9 typical)
Power Good Signal 100-500ms
Efficiency 92% Typically
Protection OCP/OVP/UVP/SCP/OPP/
OTP/SIP/NLO
Output Capacity 750W
Operation Temperature 0~40°C
Regulatory cTUVus/TUV/CB [IEC62368 Compliant]/RCM/CE/
EAC/CCC/BSMI/FCC
Fan 120mm Silence Fan
Certifications 80 Plus Gold
Connector 1 x MB 24(20+4) Pin
2 x 8(4+4) Pin EPS 12V
4 x 8(6+2) Pin PCI-E
8 x SATA
3 x Molex
Net Weight 2.24Kg
Gross Weight 3.22Kg
UPC# 0-761345-11629-9 EA750G PRO White EC
0-761345-11627-5 EA750G PRO White GB
0-761345-11363-2 EA750G PRO White
