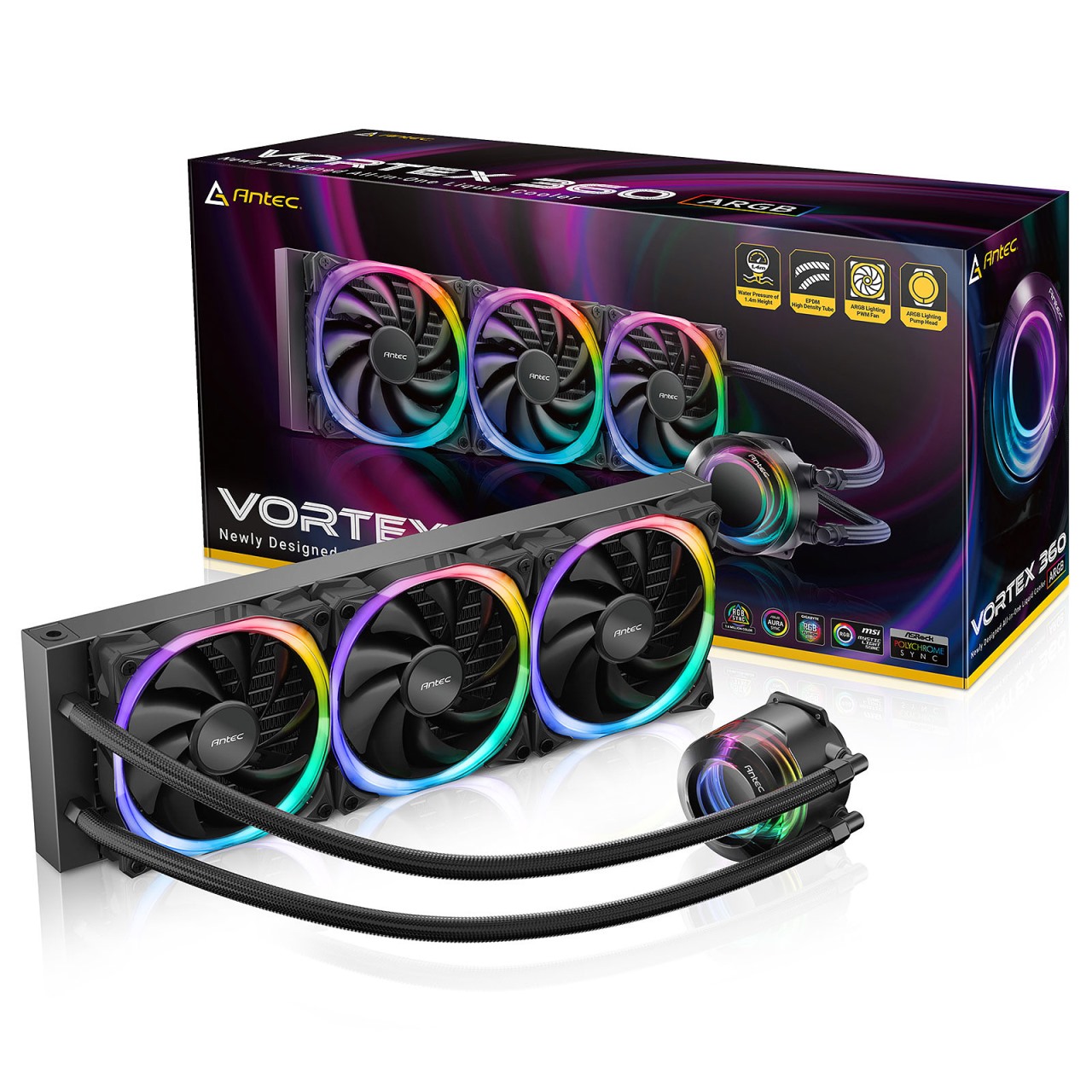

ANTEC Vortex 360 ARGB

Quick Overview

SPECIFICATIONS
Radiator
Radiator Dimensions 397 x 120 x 27 mm
Radiator Material Aluminum
Tdp Number
Vortex360 280W

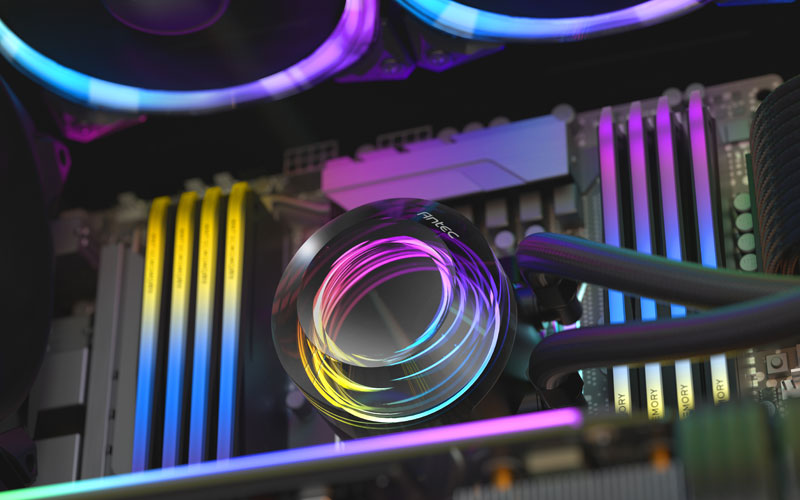

Pump
Dimensions ￠67 x 48.5 mm
Rating Voltage DC 12 V
Minimum Startup Voltage ≥ 5.0 V
Fan Speed 2800±10% RPM
Rated Current 0.25±20% A
Consumed Power 3.0 W
Flow rate ≥ 1300 mL/min
Water Pressure 1.4M
Operation Temperature -10°C ~ +60°C
Noise Level ≤ 28 dB(A)
Lifespan 40,000 hours
Connector PUMP: 3-pin | LED: 3-pin

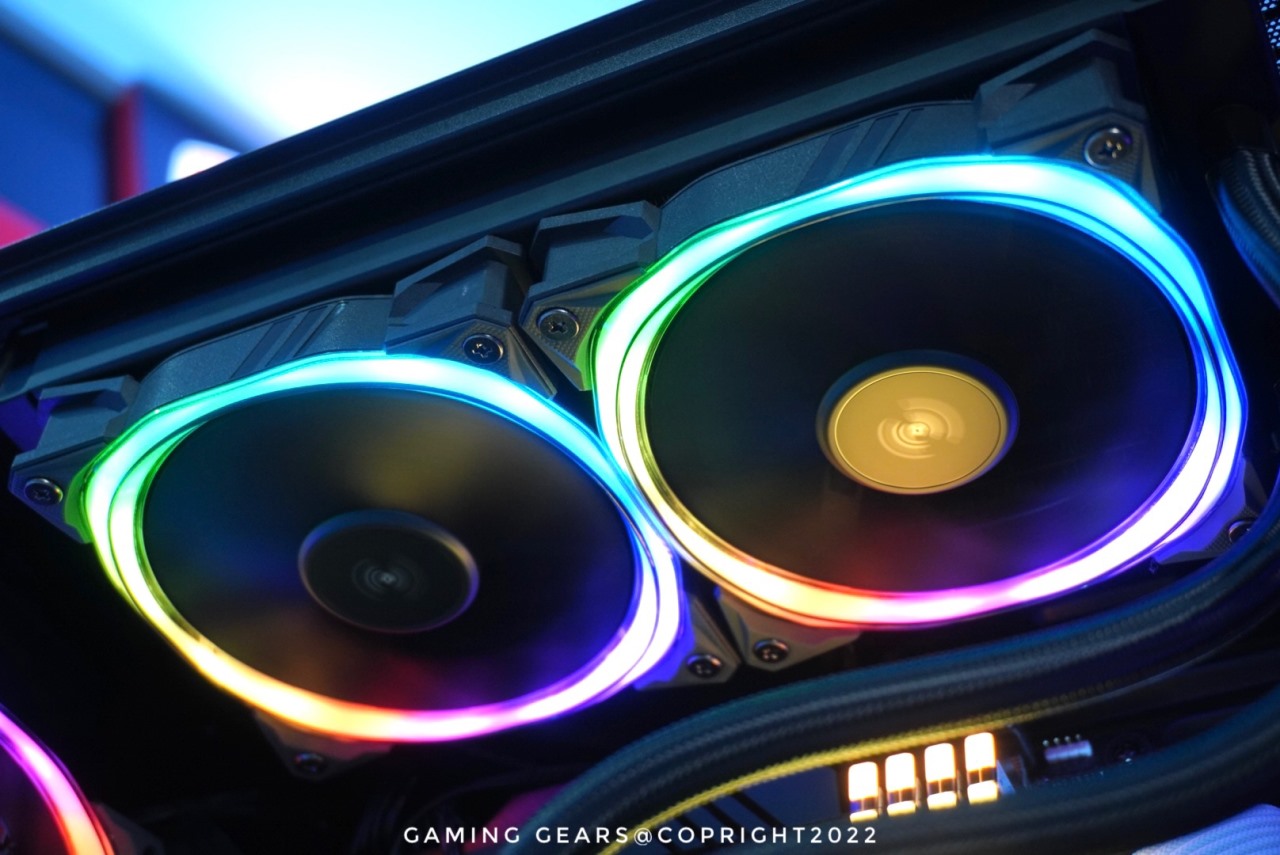

Fan
Model Name Fusion 120 ARGB fan (AH12012FM1)
Fan Type PWM Fan
Dimensions 120 x 120 x 25 mm
Bearing Type Hydraulic Bearing
LED Type Addressable RGB
Fan Speed 600±200 ~ 2000±10% RPM
Airflow 57.93 CFM (max.)
Air Pressure 2.11 mmH₂O (max.)
Fan Noise Level 31.24 dB(A)
Lifespan 40,000 hours
Connector FAN: 4-pin PWM | LED: 3-pin
Rated Voltage FAN: DC 12 V | LED: DC 5 V
Operation Voltage FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V
Rated Current FAN : ≤ 0.21 A | LED : ≤ 0.58 A
Socket Compatibility CPU Intel : LGA 115X / 1200 / 1700 / 20XX
AMD : AM3 / AM4 / TR4 / AM5
