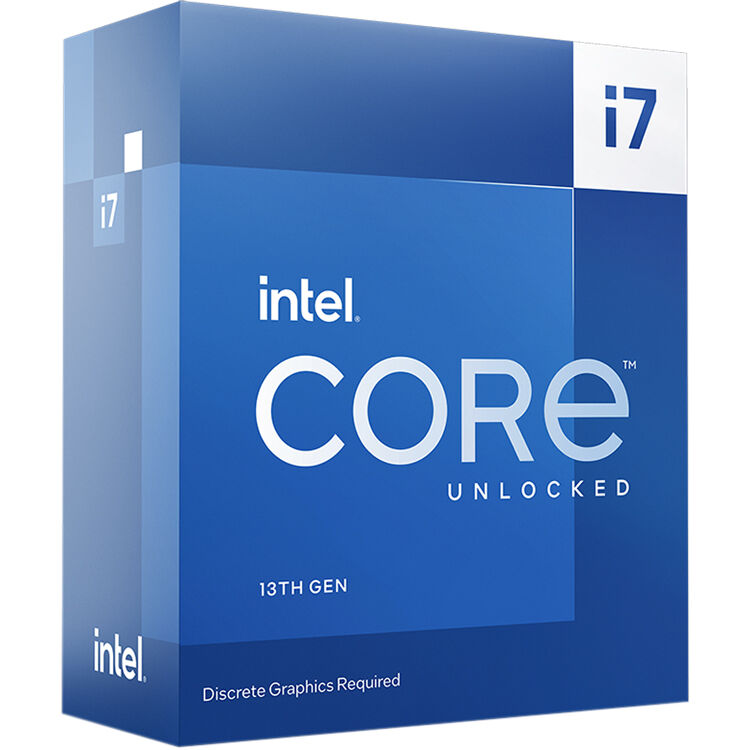

Intel® Core™ i7-13700KF Processor
Quick Overview
1 YEAR WARRANTY ON TECHNICAL PREOBLEMS
CPU Specifications
- Total Cores16
- # of Performance-cores8
- # of Efficient-cores8
- Total Threads24
- Max Turbo Frequency5.40 GHz
- Intel® Turbo Boost Max Technology 3.0 Frequency ‡5.40 GHz
- Performance-core Max Turbo Frequency5.30 GHz
- Efficient-core Max Turbo Frequency4.20 GHz
- Performance-core Base Frequency3.40 GHz
- Efficient-core Base Frequency2.50 GHz
- Cache30 MB Intel® Smart Cache
- Total L2 Cache24 MB
- Processor Base Power125 W
- Maximum Turbo Power253 W
Supplemental Information
Memory Specifications
- Max Memory Size (dependent on memory type)128 GB
- Memory TypesUp to DDR5 5600 MT/s
Up to DDR4 3200 MT/s - Max # of Memory Channels2
- Max Memory Bandwidth89.6 GB/s
Expansion Options
- Direct Media Interface (DMI) Revision4.0
- Max # of DMI Lanes8
- Scalability1S Only
- PCI Express Revision5.0 and 4.0
- PCI Express Configurations ‡Up to 1x16+4, 2x8+4
- Max # of PCI Express Lanes20
Package Specifications
- Sockets SupportedFCLGA1700
- Max CPU Configuration1
- TJUNCTION100°C
Advanced Technologies
- Intel® Gaussian & Neural Accelerator3.0
- Intel® Thread DirectorYes
- Intel® Deep Learning Boost (Intel® DL Boost)Yes
- Intel® Speed Shift TechnologyYes
- Intel® Turbo Boost Max Technology 3.0 ‡Yes
- Intel® Turbo Boost Technology ‡2.0
- Intel® Hyper-Threading Technology ‡Yes
- Intel® 64 ‡Yes
- Instruction Set64-bit
- Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2
- Idle StatesYes
- Enhanced Intel SpeedStep® TechnologyYes
- Thermal Monitoring TechnologiesYes
- Intel® Volume Management Device (VMD)Yes
Security & Reliability
- Intel® Standard Manageability (ISM) ‡Yes
- Intel® Control-Flow Enforcement TechnologyYes
- Intel® AES New InstructionsYes
- Secure KeyYes
- Intel® OS GuardYes
- Execute Disable Bit ‡Yes
- Intel® Boot GuardYes
- Mode-based Execute Control (MBEC)Yes
- Intel® Virtualization Technology (VT-x) ‡Yes
- Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
- Intel® VT-x with Extended Page Tables (EPT) ‡Yes
