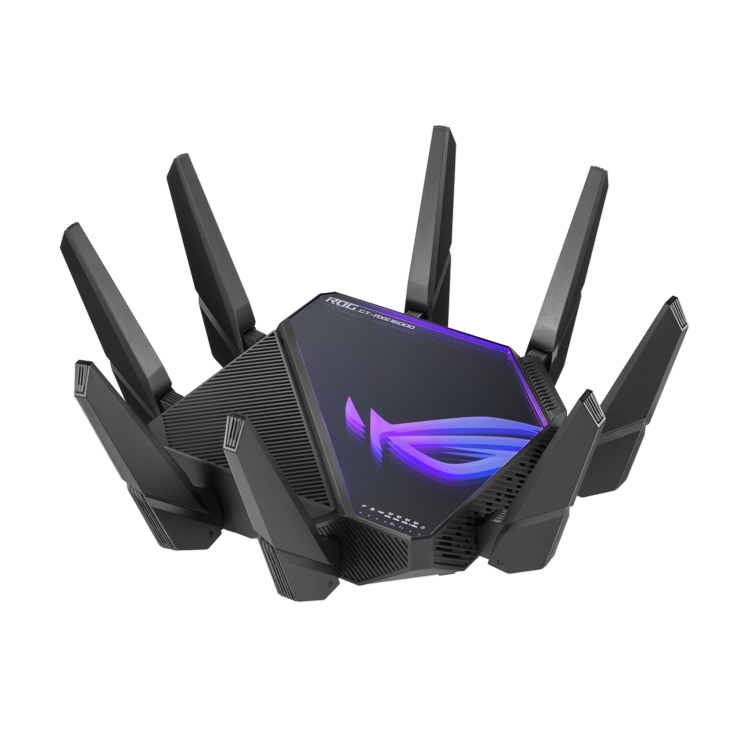

ASUS ROG Rapture GT-AXE16000

$730

Availability: In Stock

Quick Overview

GT-AXE16000 quad-band WiFi 6E (802.11ax) gaming router, new 6 GHz band, dual 10G ports, 2.5G WAN port, dual WAN, AiMesh support, VPN Fusion, Triple-level game acceleration and free network security

- World's first quad-band WiFi 6E gaming router – Ultrafast WiFi 6E (802.11ax) quad-band WiFi router boosts speeds up to 16000 Mbps
- New 6 GHz frequency band – Wider channels and higher capacity delivers higher performance, lower latency, and less interference.
- Expanded coverage – The exclusive ASUS RangeBoost Plus improves signal range and overall coverage.
- Flexible AiMesh configuration – Dedicated 5 GHz or 6 GHz backhaul using ASUS AiMesh routers for more flexible device options
- Dual 10G ports – Enjoy up to 10X-faster data-transfer speeds for bandwidth-demanding tasks with two 10 Gbps WAN/LAN ports.
- 2.5G WAN port – 2.5 Gbps port prioritizes all network traffic, and unlocks the full potential of WiFi 6.
- Triple-level game acceleration - Accelerate game traffic every step of the way — from device to game server

Description

ROG Rapture GT-AXE16000

Model Name

GT-AXE16000

Network Standard

WiFi 6 (802.11ax)

WiFi 6E (802.11ax)

Backwards compatible with 802.11a/b/g/n/ac Wi-Fi

Product Segment

AXE16000 ultimate AX/AXE performance

AX technology

Yes

Data Rate

2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps

5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

6GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Antenna

External antenna x 8 (non-detachable) Internal antenna x 4

Transmit/Receive

2.4GHz 4x4

5GHz-1 4x4

5GHz-2 4x4

6GHz 4x4

Processor

2.0GHz quad-core processor

Memory

256MB NAND flash and 2GB DDR4 RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency

Quad-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz

Ports

1 x 2.5 Gigabit WAN Port 2 x 10 Gigabit WAN/LAN Ports 4 x Gigabit LAN Ports 1 x USB 3.2 Gen 1 Port 1 x USB 2.0 Port

Button

WPS Button, LED Button, Reset Button, Power Switch

LED Indicator

Power x 1 2.4G x 1 5GHz-1 x 1 5GHz-2 x 1 6G x 1 10GE Port x 1 LAN x 1 WAN x 1

Power Supply

AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 3.42 A current ； 19.5 V with max. 3.33 A current

Package content

GT-AXE16000 WiFi Gaming Router RJ-45 Cable Power Adapter Quick Start Guide Warranty Card

Product Weight (g)

2425

AiMesh

Primary AiMesh router

AiMesh node

Router APP

ASUS Router APP

Game

Game Boost/acceleration

Game Radar

WTFast

ROG_First

OpenNAT (Game Profile)

Alexa

Support Alexa skill

AiProtection

AiProtection Pro

Router Security Assessment

Malicious site blocking

Two-Way IPS

Infected Device Prevention and Blocking

Parental Control

Parental Control Customized Internet schedule

Maximum Parental Control profile : 64

Maximum Parental Control content filter rule : 64

Traffic Control

Adaptive QoS

Bandwidth Monitor

Bandwidth limiter

Maximum Bandwidth limiter rule : 32

Traditional QoS

Traffic Monitor

Real-time traffic monitor

Wired Traffic Monitor

Wireless Traffic Monitor

Traffic Analyzer

Traffic analysis period : Daily, Weekly, Monthly

Website history

Wireless

IPv6

MU-MIMO

WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System & OWE

UTF-8 SSID

Guest Network

Maximum Guest Network rule : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3, 6 GHz x 3

Guest Network Connection time limit

Guest Network Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal

WPS

Wi-Fi MAC address filter

Maximum MAC filters : 64

Wireless scheduler

Airtime fairness

RADIUS Client

Universal beamforming

WAN

Explicit beamforming

Internet connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP

Dual WAN

WAN Aggregation

3G/4G LTE dongle

Android tethering

Port forwarding

Maximum port forwarding rule : 64

Port triggering

Maximum port triggering rule : 32

DMZ

DDNS

NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

Let's Encrypt

Safe browsing

DNS-over-TLS

LAN

DHCP Server

IGMP snooping

IPTV

LAN Link Aggregation

Manually assign IP address

Maximum manually assign IP address rule : 128

VPN

VPN Client L2TP

VPN Client OVPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server OVPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

USB application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4

Safely Remove disk

AiCloud

Download master

AiDisk

Media Server

Time Machine

Samba Server

FTP Server

Shared Folder privileges
