ASUS ROG Rapture GT-AX6000
$399
Quick Overview
GT-AX6000 Dual-Band WiFi 6 (802.11ax) Gaming Router, Dual 2.5G ports, enhanced hardware, WAN aggregation, VPN Fusion, Triple-Level Game Acceleration, free network security and AiMesh support
- High-Efficiency WiFi 6 – Ultrafast WiFi 6 dual-band router boosts speed up to 6000 Mbps, with 160 MHz channels for better efficiency and throughput.
- Dual 2.5G Ports – Traffic via 2.5G ports has top priority; flexible WAN/LAN network port configurations.
- Extreme Quad-Core CPU Power – High-performance 2.0 GHz quad-core 64-bit CPU takes computational capabilities to the next level.
- Expanded coverage – The exclusive ASUS RangeBoost Plus improves signal range and overall coverage.
- Triple-Level Game Acceleration – Accelerate game traffic every step of the way from device to game server.

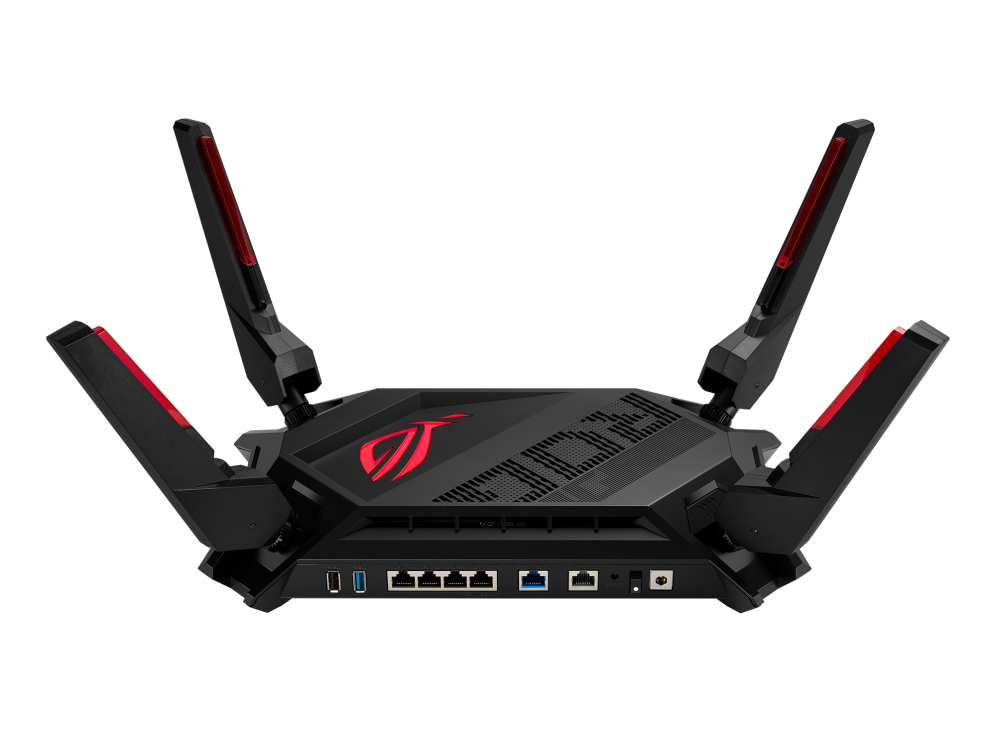

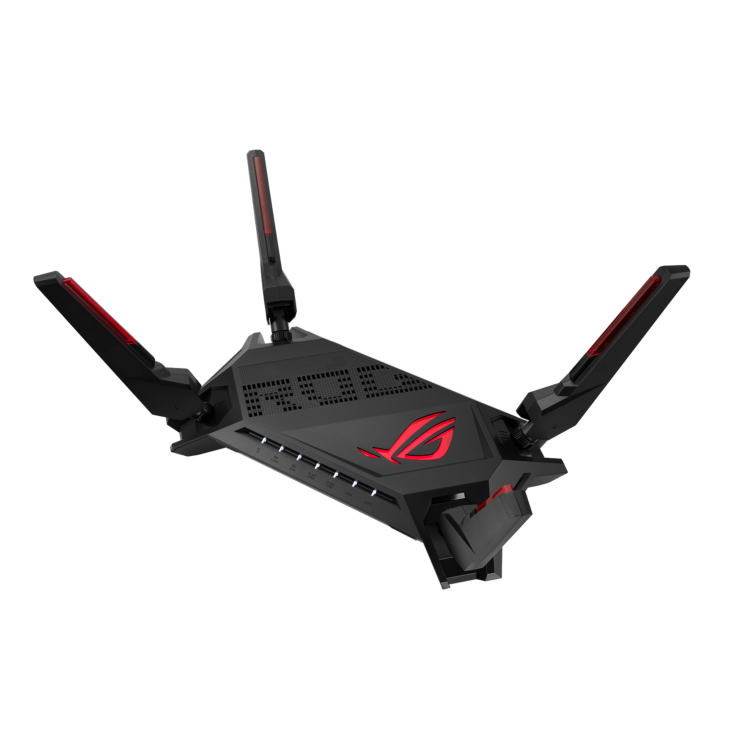

ROG Rapture GT-AX6000
Model Name
GT-AX6000
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11ax
IPv4
IPv6
Product Segment
AX6000 ultimate AX performance
AX technology
Yes
Data Rate
2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps
5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
Antenna
External antenna x 4
Transmit/Receive
2.4GHz 4x4
5GHz 4x4
Processor
2.0 GHz quad-core processor
Memory
256 MB Flash, 1 GB RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access),
Beamforming: standard-based and universal,
1024-QAM high data rate,
20/40/80/160 MHz bandwidth,
Operating Frequency
2.4G Hz / 5 GHz
Ports
RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1,
RJ45 for 2.5 Gigabits BaseT for LAN x 1,
RJ45 for Gigabits BaseT for LAN x 4,
USB 3.2 Gen 1 x 1,
USB 2.0 x 1
Button
WPS Button,
Reset Button,
Power Button,
LED Control Button
LED Indicator
Power x 1
2.4GHz x 1
5GHz x 1
2.5G WAN x 1
2.5G LAN x 1
LAN x 1
WPS x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current or 19.5 V with max. 2.31 A current
Package content
GT-AX6000 WiFi 6 Dual-Band Gaming Router
RJ-45 cable
Power Adapter
Quick Start Guide
Warranty Card
Product Weight (g)
1121.4 g
AiMesh
AiMesh
Primary AiMesh router
AiMesh node
Router APP
ASUS Router APP
Game
Game Boost/acceleration
ROG_First
OpenNAT (Game Profile)
Gaming port
AiProtection
AiProtection Pro
Router Security Assessment
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
Parental Control
Parental Control
Parental Control Customized Internet schedule
Traffic Control
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Traditional QoS
Maximum Traditional QoS rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic analysis period : Daily, Weekly, Monthly
Website history
Wireless
IPv6
MU-MIMO
WiFi Encryption : Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
UTF-8 SSID
Guest Network
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal
WPS
Wi-Fi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
RADIUS Client
Universal beamforming
WAN
Explicit beamforming
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule : 64
Port triggering
Maximum port triggering rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
LAN
DHCP Server
IGMP snooping
IPTV
LAN Link Aggregation
Manually assign IP address
Maximum manually assign IP address rule : 64
VPN
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Fusion
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges
Administration
Operating mode : Accesspoint, AiMeshnode, Mediabridge, Repeater, Router
Operating system : ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL)
SSH
Configuration backup and restore
Diagnosis tools
Feedback system
System log
