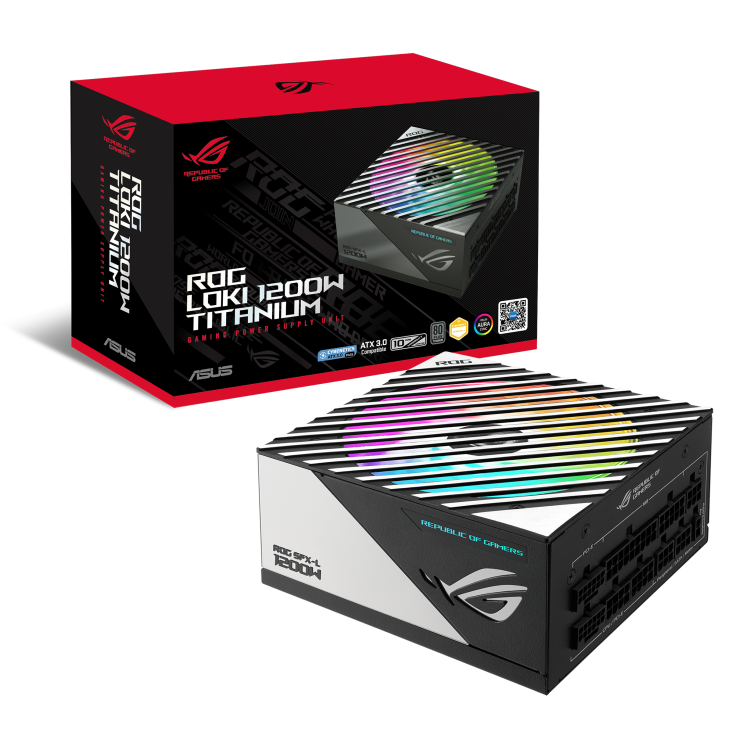

ASUS ROG-LOKI-1200T-SFX-L-GAMING
$319
Quick Overview
Taking after the ROG Thor, the ROG Loki 1200W Titanium brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
Model
ROG-LOKI-1200T-SFX-L-GAMING
Intel Form Factor
SFX-L
PFC Type
Active PFC
ATX Standard
ATX 3.0
Dimensions
125 x 125 x 63.5 mm
Efficiency
80Plus Titanium
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 100A 0.8A 3A
Combined Load
110W 110W 1200W 9.6W 15W
Total Output
1200W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 2 (both PSU & component side)
PCI-E 8-pin x 4
SATA x 6
PERIPHERAL x 4
CPU 4+4-pin x 2
PCI-E 16-pin x 2 (both PSU & component side)
PCI-E 8-pin x 4
SATA x 6
PERIPHERAL x 4
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (450mm)
CPU Cable x 2 (550mm)
PCI-E Gen 5 16-pin Cable x 2 (450mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 2 (450mm)
SATA 1-to-3 Cable x 2 (300+200+100mm)
Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
ATX to SFX adapter bracket x 1
Motherboard Power Cable x 1 (450mm)
CPU Cable x 2 (550mm)
PCI-E Gen 5 16-pin Cable x 2 (450mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 2 (450mm)
SATA 1-to-3 Cable x 2 (300+200+100mm)
Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
ATX to SFX adapter bracket x 1
Weight
2.15 kg (single PSU)
AURA SYNC
ARGB
Cybenetics Noise Level Certification
S++
0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button
No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.
